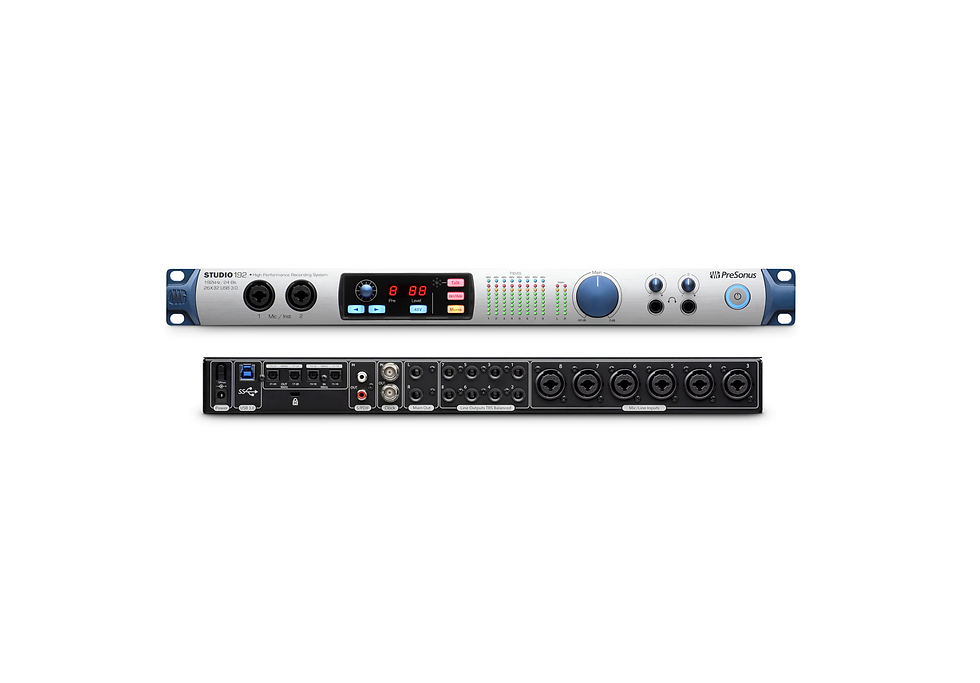

PreSonus Studio 192
Tổng quan về PreSonus Studio 192
The Studio 192 audio interface is designed to be the central hub for any project or professional studio. The onboard talkback mic can be routed to any mix. Onboard Dim and Mono options let you take control of your main mix. Listen to any mix from either headphone amp. Use the 10 balanced outputs for monitor mixing, speaker switching, or both, depending on how you work. With its flexible software and abundant I/O, the Studio 192 fits into any recording and production environment.
Superior sound.
Audiophile-grade digital converters, ultra-low jitter clocking, and recallable preamps add up to a superior recording and listening experience. The Studio 192 audio interface operates at up to 192 kHz for ultra-high-definition mixing and recording. High-quality Burr-Brown converters on every input and output provide 118 dB of dynamic range to capture complex musical harmonics smoothly and naturally with no audible distortion. And our recallable XMAX microphone preamps deliver incredibly high headroom, deep lows, smooth highs, and a rich overall sound so you’ll hear every breath, transient, and detail in your recordings.


PreSonus Studio 192

21.150.000₫Giá

  • 12 tháng

  • Mi​crophone Preamp
    Type: XLR Female (via Combo), Balanced Remote
    Maximum Input level (min. gain, 1 kHz@0.5% THD+N): +12 dBu, ±0.5 dB
    Gain Control Range: 60 dB, ±1 dB
    Frequency Response (A-D): 10 Hz to 40 kHz, ±0.2 dB
    Dynamic Range (min. gain, a-wtd): > 110 dB
    Dynamic Range (mid. Gain, unwtd): > 105 dB
    THD+N (min. gain, a-wtd): < 0.005%
    Input Impedance: 1.6 kΩ
    EIN (+55 dB gain, 150Ω input, 20 Hz-22 kHz, a-wtd): < 128 dBu
    Common Mode Rejection Ratio (1 kHz, +55dB gain): > 55 dB
    Phantom Power: +48V, ±3V, >8 mA per channel

    Instrument Inputs
    Type: ¼” TS Female (via Combo), Unbalanced
    Maximum Input Level (min. gain, 1 kHz@0.5% THD+N): +16 dBu, ±0.5 dB
    Gain Control Range: 60 dB, ±1 dB
    Frequency Response (A-D): 20 Hz to 20 kHz, ±0.2 dB
    Dynamic Range (min. gain, a-wtd): > 110 dB
    Dynamic Range (mid. Gain, unwtd): > 105 dB
    THD+N (1 kHz, -1 dBFS, a-wtd): < 0.005%
    THD+N (1 kHz, -1 dBFS, un-wtd): < 0.005%
    Input Impedance: > 1 MΩ
    Crosstalk (1 kHz, channel-to-channel): < -80 dB

    Line Inputs
    Type: ¼” TRS Female (via Combo), Balanced
    Maximum Input Level (min. gain, 1 kHz@0.5% THD+N): + 18 dBu, +/-0.5 dB
    Frequency Response (A-D): 20 Hz to 20 kHz, +/-0.2 dB
    Dynamic Range (min. gain, a-wtd): > 114 dB
    Dynamic Range (mid. gain, unwtd): > 105 dB
    THD+N (1 kHz, -1 dBFS, a-wtd): < 0.005%
    Input Impedance: 10 kΩ
    Crosstalk (1 kHz, channel-to-channel): < -80 dB

    Main and Line Outputs
    Type (Line Outputs): ¼” TRS Female, Impedance Balanced
    Type (Main Outputs): ¼” TRS Female, Impedance Balanced
    Maximum Output Level: +18 dBu, ±0.5 dB
    Frequency Response: 20 Hz to 20 kHz, ±0.2 dB
    Dynamic Range (a-wtd): > 112 dB
    THD+N (1 kHz, -1 dBFS, un-wtd): < 0.005%
    Output Impedance: 51Ω
    Crosstalk (1 kHz, channel-to-channel): < -80 dB

    Headphone Outputs
    Type: ¼” TRS Female, Stereo, Unbalanced
    Maximum Output Level: 150 mW/channel @ 60Ω
    Frequency Response: 20 Hz to 20 kHz, ±0.3 dB
    Dynamic Range (a-wtd): > 103 dB
    THD+N (1 kHz, -1 dBFS, un-wtd): < 0.005%
    Crosstalk (1 kHz, channel-to-channel): < -80 dB
    Impedance Working Range: 16Ω to 600Ω

    Internal Talkback Microphone
    Type: Electret Condenser
    Sensitivity: -42 dB

    Signal Level LEDs
    Signal: 1 -50 dBFS
    Signal: 2 -30 dBFS
    Signal: 3 -20 dBFS
    Signal: 4 -10 dBFS
    Signal: 5 -6 dBFS
    Signal: 6 -4 dBFS
    Signal: 7 -2 dBFS
    Clip: -0.5 dBFS

    Digital Audio
    Host Interface: USB 3.0 (backward compatible with USB 2.0)
    ADC Dynamic Range (A-wtd, 48 kHz): 118 dB
    DAC Dynamic Range (A-wtd, 48 kHz): 118 dB
    Bit Depth: 24 bits
    Internally Supported Sample Rates: 44.1, 48, 88.2, 96, 176.4, 192 kHz
    ADAT Optical I/O: ADAT/SMUX II formats supported [16x16 (44.1/48 kHz), 8x8 (88.2/96 kHz)]
    S/PDIF I/O: RCA female connections, supported up to 96 kHz
    Word Clock I/O: BNC connector, 4.5 Vpp @75Ω load

    Clock
    Jitter: <50 ps RMS (20 Hz – 20 kHz)
    Jitter Attenuation: >60 dB (1 ns in => 1 ps out)

    Power
    External Power Adapter: +12 VDC, 3.0A, center positive
    Connector Type Barrel: 5.5 mm OD, 2.1 mm ID, 9.5 mm length
